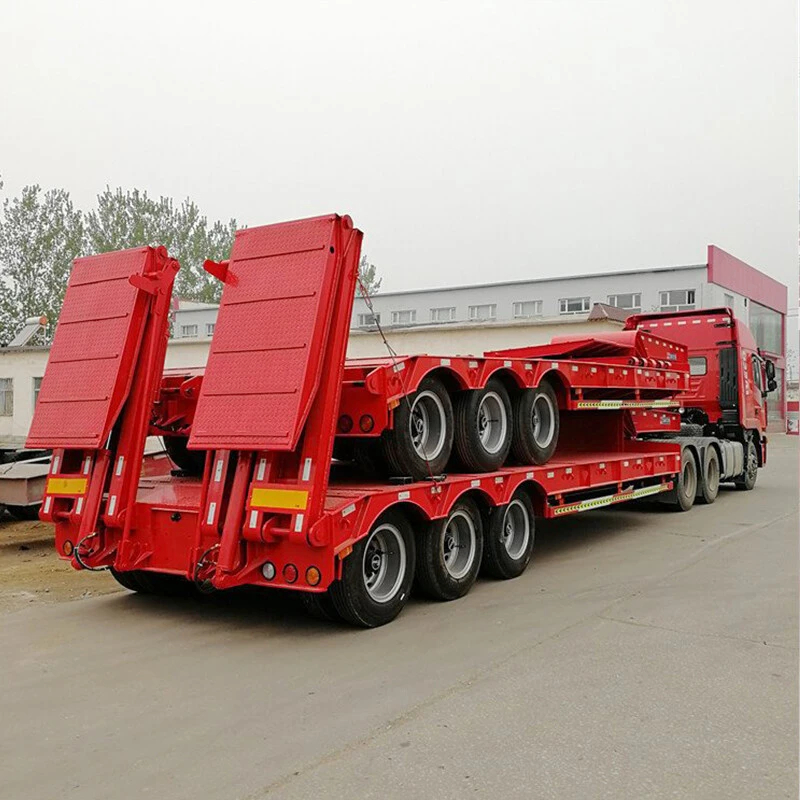

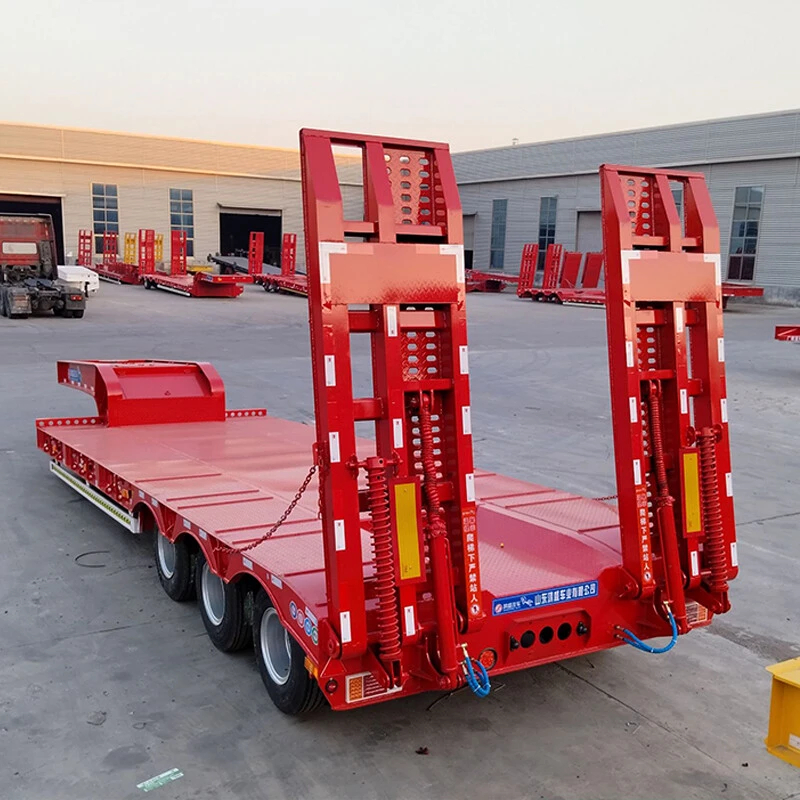

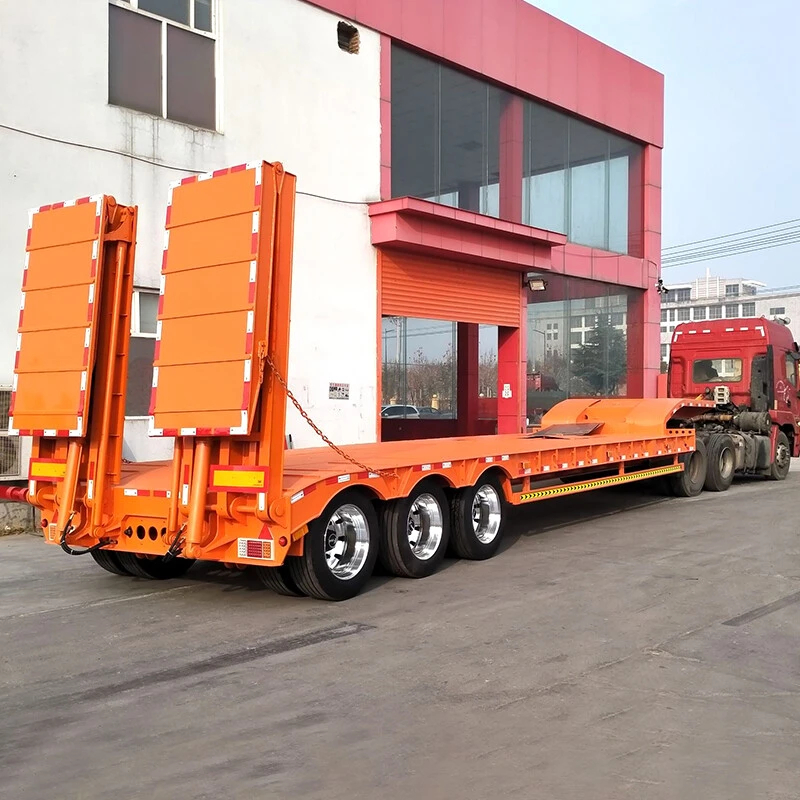

Used 3 Axle 60 Tons Lowbed Semi-Trailer

Used 3 Axle 60 Tons Lowbed Semi-Trailer
Dimension: 14000*3000*3750mm(customized according to your requirement)
Capcaity: Max.100tons
Axle: 4 axles, BPW / FUWA brand
Landing Gear: JOST brand with two speeds
Suspension: Mechanical suspenion reinforced type
Leaf Spring: 90mm(W)*16mm(T)*10pcs
Tire: 315/80R22.5, 12R22.5
Color:Optional
Inquiry Now →

PRODUCT DESCRIPTION


Low bed semi trailer

Lowbed semi trailer also be named Lowboy trailer, Low loader trailer, Drop deck trailer, Low deck trailer, Low loader.   Generally the normal low bed semitrailer loading capacity is from 30T_120T. For the special loading on loading capacity or cargo szie, customized is necessary.Low loader trailer is the most classic type of low deck and heavy haulage, and all the other lowbed trailers like RGN trailer, Folding neck trailer , Extendablelowbed trailer are designed based on the original feature of conventional lowbed trailer. Gooseneck,long cargo platform, the rear end with whell and ramp, the three parts are the main structure of   low loader.Ultra-low deck,long cargo platform, heavy haulaging are the common features of lowbed trailer.

Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available)
Product Name2 axles lowbed semi trailer3 axles lowbed semi trailer4 axles lowbed semi trailer
Size(mm)12500*3000*110013000*3000*110014000*3000*1100
Payload40000KG60000KG80000KG
Plate4mm checked plate4mm checked plate5mm checked plate
Axles2 * 13ton capacity3 * 13ton capacity4 * 13ton capacity
(Brand optional)(Brand optional)(Brand optional)
LadderHydraulic ladder or Mechanical spring ladder
Main beamHeight:500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm
Material is Q345B Steel.
Side beam250mm I beam; 20mm channel steel ( Material is Q235steel ).
Bottom Platform4mm thickness diamond steel plate
SuspensionMechanical suspension (Air suspension optional)
Leaf spring90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets)
Tire12R22.5 / 11.00R20 8pcs (Other size optional)
Rim9.00-22.5 / 11.00R20 8pcs (Other size optional)
Kin pin2’’/3.5’’ bolt type
Landing gear28 Ton two speed
Braking systemDouble air chamber ,brake valve,45L air tanks ;ABS optional
ElectricalLED light , 7 ways ,24V
AccessoryOne tooling box with a set of standard trailer tool
Painting1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.
Other DescriptionsThe cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
transportation.
UsageIt is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products.
Other SpecificationsIt's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders
belong to optional components), with the overall height of 1710 mm.
RemarkWe can design model according to client's requirement

a985b424-5817-4420-9aef-d8b4139e3573

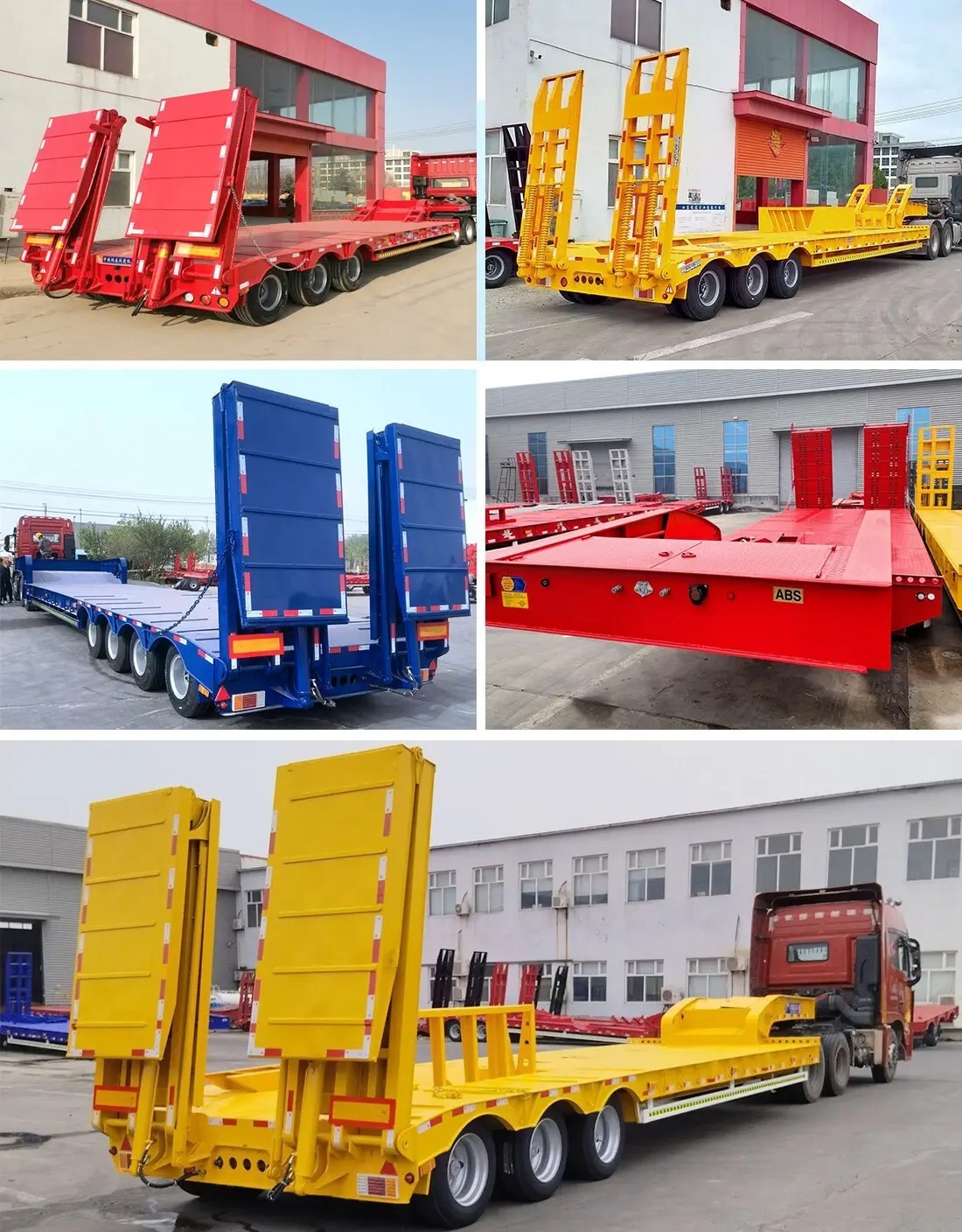

FACTORY SHOW

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6

FAQ

Q:What about your price?
A:Our price is very competitive because we are a factory. Feel free to contact us if you are interested in our products.

Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.

Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we
accept the third party inspection absolutely.

Q:How about the delivery time?
A:Within 3-15 days after we confirm you requirement.

Q:What is your terms of payment ?
A:T/T, L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

Q: Do you provide samples?
A:Yes,we could offer the sample for you to test but please pay freight fee.

Q:How do we trust your company?
A:We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
