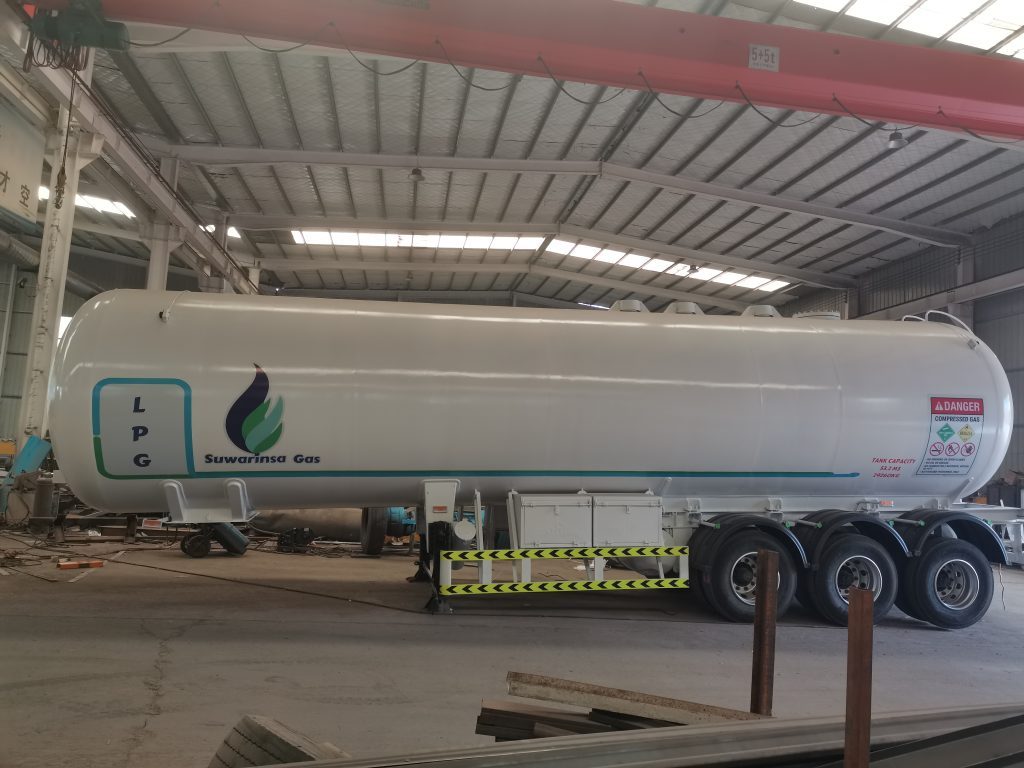

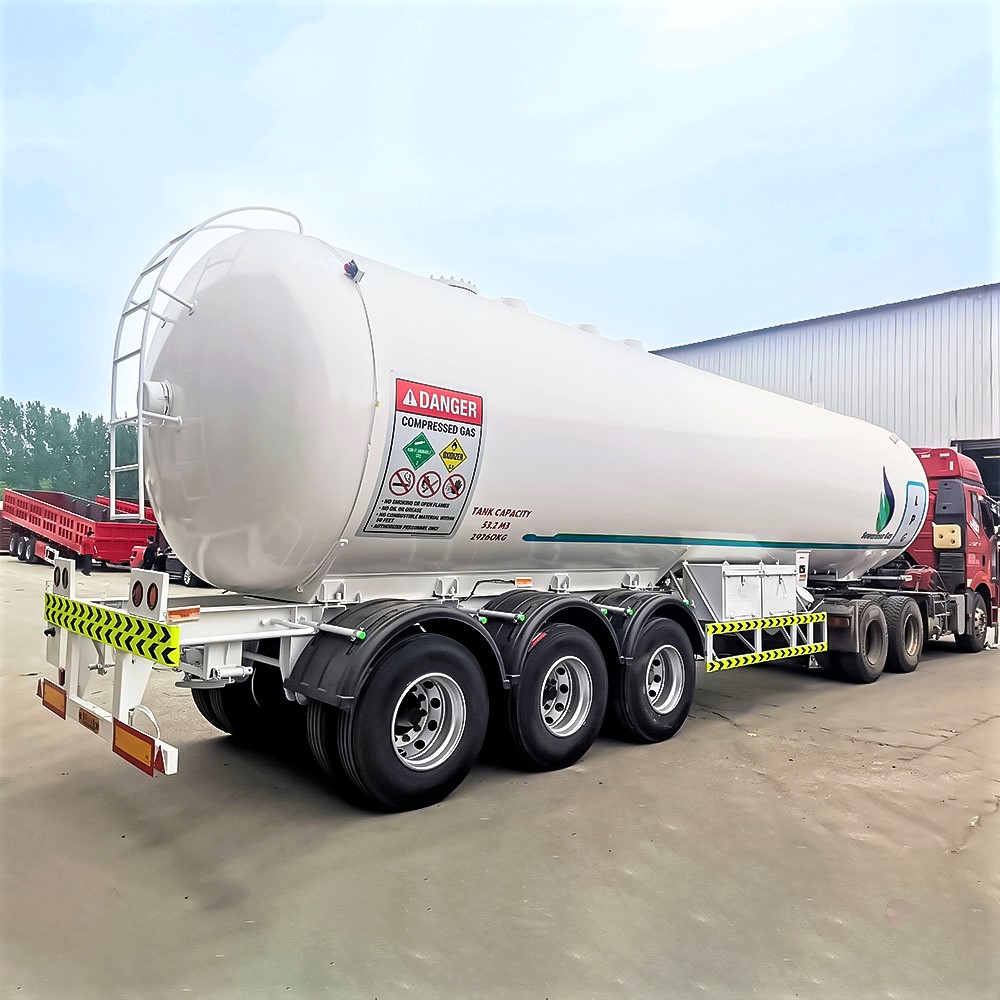

The 3 Axle LPG Tanker Semi Trailer is a high-specification transport solution designed for the secure handling of liquefied petroleum gases. Its ASME/DOT-compliant carbon steel construction combines robust protection with long-term corrosion resistance, while the configurable 1-7 compartment design enables multi-grade product transportation in a single load.

Engineered for logistics efficiency, this trailer features:

High-volume capacity (60.72m³/42,000L) to maximize payload economics

Triple-axle stability with 13T/16T axle options for balanced load distribution

WABCO brake system with ABS for enhanced safety during transit

Quick-disconnect 3″/4″ ball valves paired with dual 6-meter discharge hoses

The Q345B steel I-beam frame provides superior structural integrity, while optional air suspension ensures smooth handling when fully loaded. With its driver-accessible Jost landing gear and full-length aluminum walkway, this trailer is built to streamline both transport operations and maintenance procedures.

Ideal for energy distributors and industrial gas suppliers requiring dependable bulk transport with strict safety compliance.

Key Specifications：

• Brand:  zw trailer
• Tank Material: Q235B carbon steel with 2.16MPa working pressure
• Axle Configuration: 3 axles (13T/16T options)
• Payload Capacity: 60.72m³ (42,000 liters)
• Tare Weight: ≤9,500kg
• Discharge System: 3″/4″ ball valves + 2×6m 4″ rubber hoses
• Suspension: Mechanical (standard) / Air (optional)
• Brakes: WABCO EBS with ABS
• Compliance: ASME Section VIII, GB18564.1-2019
• Use Case: LPG distribution, industrial gas transport, chemical logistics
